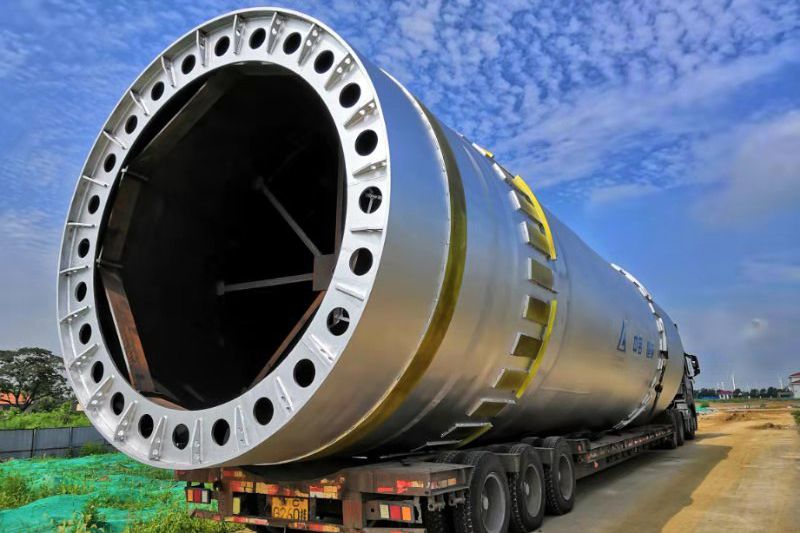

Rotary Kiln

An efficient waste handling equipment in the incineration industry

Rotary Kiln

Rotary Kiln

An efficient waste handling equipment in the incineration industry

Zhongding is a leading non-standard environmental protection equipment manufacturer in China. Our direct-fired rotary kiln is known for its durability, efficiency, and quality.

The mechanism of the rotary kiln is to treat waste at high temperatures in the rotating drum, and to significantly reduce the waste’s volume within the combustion chamber during a specified incineration time.

Request a Quote
Features

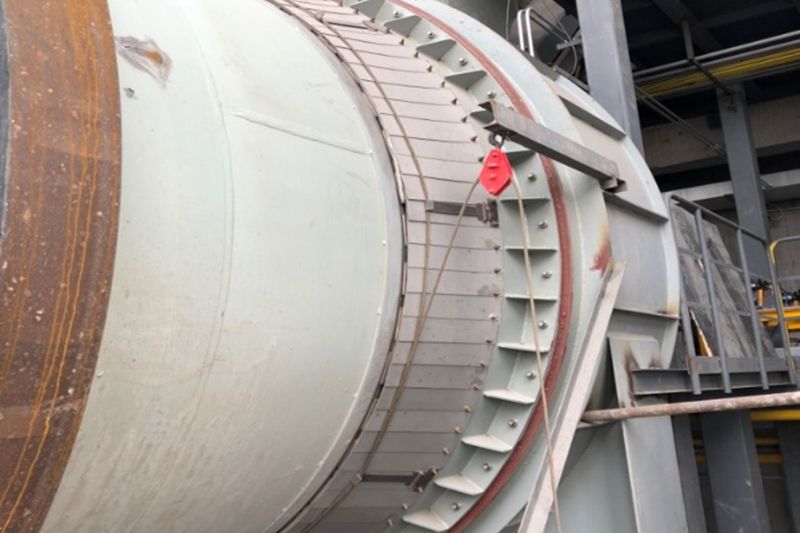

Flexible Sealing
Flexible Sealing

The rotary kiln equips flexible seal (the wear-resistant coating on the rotary kiln drum body is in contact with a high-temperature and wear-resistant surface fixed on elastic heat-resistant steel; the middle layer uses carbon-silicon-nickel composite sealing plates, and the outer protective layer is SUS304, with graphite self-lubricating blocks on the contact surface with the rotary kiln). Long service life, good sealing performance, and <1% low air leakage rate are guaranteed.

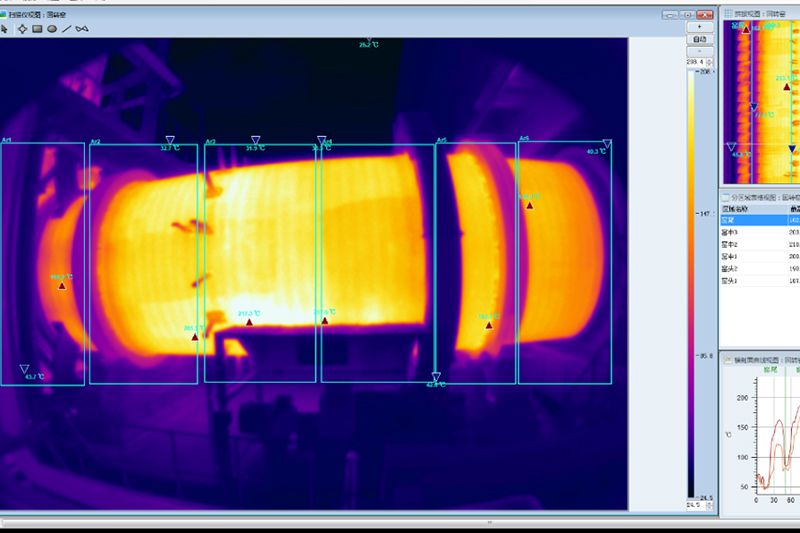

Infrared Monitoring
Infrared Monitoring

The rotary kiln is equipped with an operating status monitoring system (infrared scanner or thermal imaging system, upon customer’s request) to comprehensively measure the temperature of the rotary kiln shell and monitor in real-time the condition of the refractory materials inside the kiln.

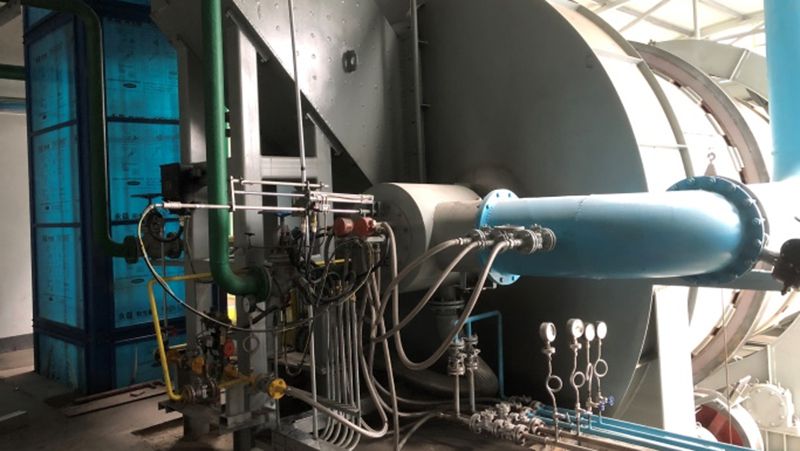

Rotary Kiln Burner
Rotary Kiln Burner
Rotary Kiln Burner

The rotary kiln applies a combination burner (fuel + waste liquid + primary air supplementation). Its adjustment control valves and instruments are from top-tier suppliers. Compact structure, space-saving; multi-component waste handling, separated control, automatic ignition, automatic flame monitoring, extinguishing protection, fault alarm, etc.; high flame intensity, stable combustion, good safety, and wide power adjustment range.

Primary air supplementation enters the rotary kiln through the combination burner and the outer side of the inlet chute’s water-cooling wall. This preheats the primary air while protecting the burner, thus to improve thermal efficiency. The primary air supplementation adopts a special swirl structure, which allows for full contact with the materials.

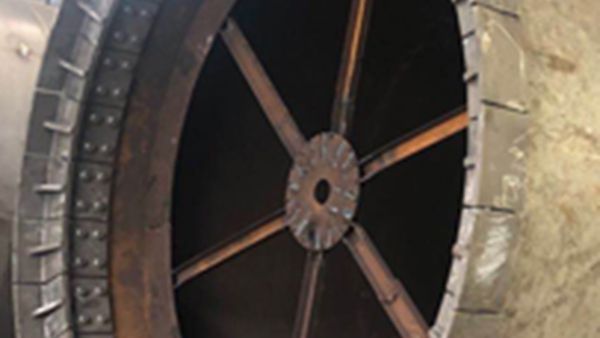

Replaceable Kiln Tail Guard Plate
Replaceable Kiln Tail Guard Plate

A replaceable kiln tail guard plate design is applied. All metal parts of the rotary kiln tail that extend into the secondary combustion chamber and in contact with high-temperature gases are made of heat-resistant stainless steel (310S). This ensures long service life and minimal casting material detachment.

Specifications
  • Dimensions: (maximum) diameter 5m * length 17m
  • Capacity: 15t to 200t per day
  • Refractory material is chosen according to handled waste’s conditions to ensure the service life of the rotary kiln
  • Applicable fuel types: petroleum and natural gas

Besides rotary kiln product, complete services and solutions are also offered, including:

  • Turnkey rotary kiln solutions for hazardous waste and medical waste handling and corresponding equipment (baghouse dust collector, filter bag cage). Based on your specific needs.
  • On-site assistance and installation
  • Waste disposal system
Zhongding is a company with focus on the design and manufacture of incineration systems and waste treatment equipment for various industries. We have different waste disposal systems for global incineration plant operators and waste treatment companies, such as rotary kiln incinerators that are used to handle industrial, medical and hazardous wastes, and sludge incineration systems that can accomplish sludge drying and incineration processes. In addition to providing turnkey solutions for hazardous waste handling and sludge treatment, we also supply waste handling equipment like baghouse dust collector, filter bag cage and disk feeder to help waste treatment facilities achieve higher operational efficiency.
